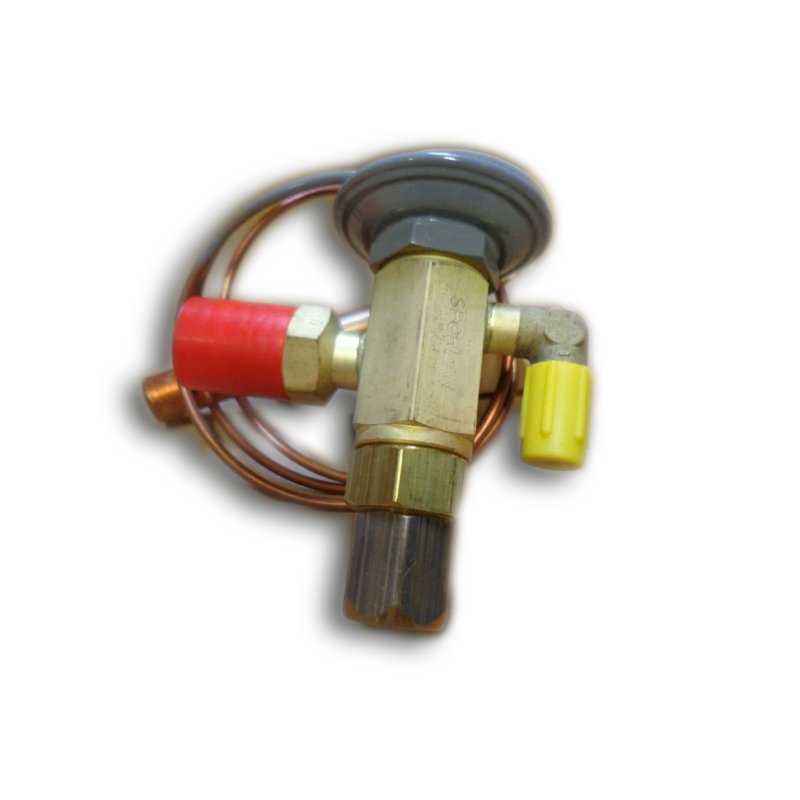

Sporlan – FJ-1/2-C – Thermal Expansion Valve, 2 X 4 SAE 30″, R-134a, Max 450 PSI

355,00$

Description

*** Garantie valable si installée par une compagnie certifiée Carrier

The Sporlan Type F-EF thermostatic expansion valves have a brass bar stock body. The F valve has flare fittings and the EF valve has extended ODF connections. Both valve types are available with adjustable superheat, long lasting replaceable power element and accessible internal parts. Each valve is factory tested to ensure positive leak-free performance.

Markets:
• Air Conditioning
• Refrigeration
• Transportation

Features/Benefits:
• Inlet strainer
• Thermostatic charges available to match system conditions
• Available with internal equalizer or external equalizer
• Design working pressure for the F and EF valves is 450 psi (31 bar)

Applications:
• Heat Pumps
• Air Conditioning – Residential, Commercial, Chillers
• Refrigeration – Cases, Coolers, Walk in Coolers, Freezers
• Capacity ranges from 1/5 to 3 tons R-22
• Transportation

Dimensions
Length 4.25 Inches (in)
Width 3.75 Inches (in)
Height 3 Inches (in)
Weight 1.14 Pounds (lbs)
Attributes
Application Commercial Refrigeration
Brand Parker Sporlan
Capacity .5 Ton
Capillary Length 30″
Composition Bi-Metal
Connection Type SAE
Country Of Origin USA
Country of Manufacture USA
Cubic Measurement 0.0208,0.0277
Dimensional Weight 1
EAN 0687472029748
Height 3
Inlet Connection Size 1/4″ SAE
Length 4.25
Metering Device TXV/TEV – Thermostatic Expansion Valve
Outlet Connection Size 1/2″ SAE
Package Height 9.5
Package Length 13
Package Weight 28.12
Package Width 12
Product Type F-Valve
Prop 65 YES
Refrigerant R-134a
Size 1/4″ x 1/2″
UOM EA
UPC 687472029748
UPC Barcode 687472029748
Weight 1.14
Width 3.75

Part no.

FJ-1/2-C
