Sporlan – 168719-A Thermostatic Expansion Valve RZE-8-GA 5/8×7/8ODF
575,00$
Description
*** Garantie valable si installée par une compagnie certifiée Carrier

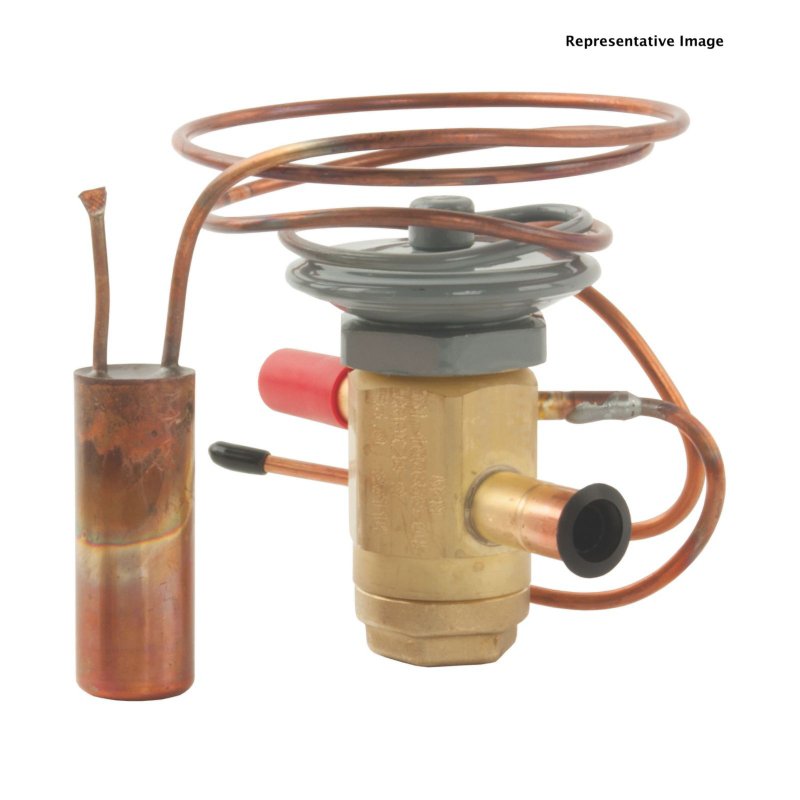

168719-A Thermostatic Expansion Valve RZE-8-GA 5/8×7/8ODF
- Inlet strainer
- Can be applied in bi-directional applications
- Can operate over widely varying operating conditions
- Thermostatic charges available to match system conditions
- Available with internal equalizer or external equalizer
- Design working pressure for the R-ER-SR valves is 450 psi (31 bar).
- For R-410A only the design working pressure is 700 psi (48.3 bar)
Specifications
| Dimensions | |
|---|---|
| Length | 5 Inches (in) |
| Width | 4 Inches (in) |
| Height | 3.5 Inches (in) |
| Weight | 1 Pounds (lbs) |
| Attributes | |
| Application | Heat Pumps A/C Residential, Commercial, Chillers Refrigeration Cases, Coolers, Walk in Coolers, Freezers Capacity ranges from 1/3 to 12 tons R-22 Transportation |
| Body Material | Brass |
| Brand | Parker Sporlan |
| CSA Listing | YES |
| Capillary Length | 60 |
| Composition | Brass |
| Connection Type | ODF |
| Country Of Origin | USA |
| Country of Manufacture | USA |
| Cubic Measurement | 0.0405 |
| Dimensional Weight | 1 |
| Features | Inlet strainer Can be applied in bi-directional applications Can operate over widely varying operating conditions Thermostatic charges available to match system conditions Available with internal equalizer or external equalizer Design working pressure for the R-ER-SR valves is 450 psi (31 bar). For R-410A only the design working pressure is 700 psi (48.3 bar) |
| Height | 3.5 |
| Inlet Connection Size | 0.625 |
| Length | 5 |
| Maximum Working Pressure | 700 |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| Outlet Connection Size | 0.875 |
| Overall Length | 5.0 |
| Package Height | 4.9606 |
| Package Length | 5.1181 |
| Package Weight | 1.2 |
| Package Width | 3.3858 |
| Prop 65 | YES |
| Refrigerant | R-410A |
| UOM | EA |
| UPC | 822529382746 |
| UPC Barcode | 822529382746 |
| Weight | 1 |
| Width | 4 |
