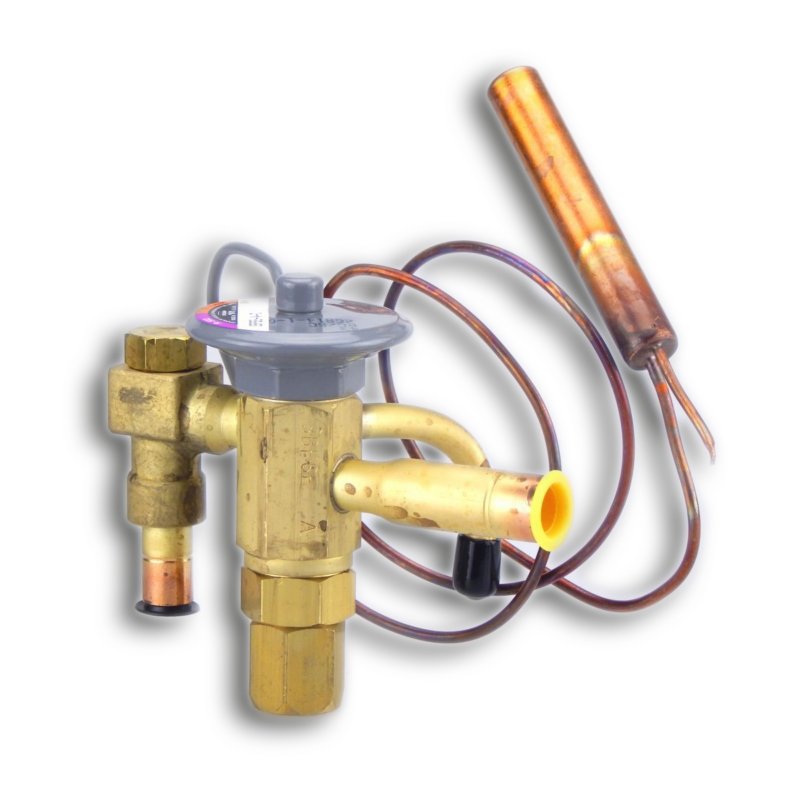

Sporlan – 108617 SBFSE-A-C 3/8″ x 1/2″ ODF Thermal Expansion Valve w/ 30″ Capillary (1/2 – 1 Ton)
540,00$
Description
*** Garantie valable si installée par une compagnie certifiée Carrier
SBFSE-A-C 1/2 thru 1, R-404a Comm Refrig 30″ 3/8″ x 1/2″ x 1/4″ ODF Angle
- Balance port design provides perfect pin and port alignment and prevents pressure drop across the valve from influencing valve operation.
- Thermostatic charges available to match system conditions.
- Available with external equalizer and internal equalizer.
- Design working pressure of 450 psi
Specifications
| Dimensions | |
|---|---|
| Length | 4.75 Inches (in) |
| Width | 5 Inches (in) |
| Height | 3 Inches (in) |
| Weight | 1.26 Pounds (lbs) |
| Attributes | |
| Application | Commercial Refrigeration |
| Brand | Parker Sporlan |
| Capacity | .5 Ton Thru 1 Ton |
| Capillary Length | 30″ |
| Composition | Body – Machined Brass Bar, Seat – Brass, Pin – Stainless Steel, Pushrod – Stainless Steel, Type of Joints – Knife Edge to Metal, Connections – ODF Copper Fittings Silver Soldered to Body, Inlet Strainer – Removable Strainer Screen |
| Connection Type | ODF |
| Country Of Origin | USA |
| Country of Manufacture | USA |
| Cubic Measurement | 0.0347,0.0412 |
| Dimensional Weight | 1 |
| EAN | 0687472242147 |
| Height | 3 |
| Inlet Connection Size | 3/8″ ODF |
| Length | 4.75 |
| Maximum Working Pressure | 450 psi (31 bar) |
| Metering Device | TXV/TEV – Thermostatic Expansion Valve |
| Outlet Connection Size | 1/2″ ODF |
| Package Height | 11 |
| Package Length | 15.5 |
| Package Weight | 31.36 |
| Package Width | 12.5 |
| Prop 65 | NO |
| Refrigerant | R-404A |
| Size | 3/8″ x 1/2″ – 1/4″ |
| UOM | EA |
| UPC | 687472242147 |
| UPC Barcode | 687472242147 |
| Weight | 1.26 |
| Width | 5 |
